Product Dimensions 33.75"h x 48"w x 30"d

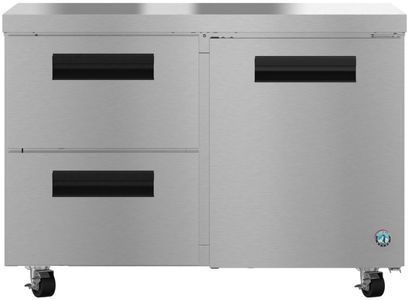

The UR48B-D2 Steelheart Series Undercounter two section refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 12 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(1) stainless steel door and (2) stainless steel drawers
Insulated with 2″ CFC free, foamed in place polyurethane
(1) epoxy coated wire shelves and (2) stainless steel drawers each with (1) divider bar
Engineered to maintain food safe temperatures in 100°F ambient conditions
(4) 4″ Stem Casters (2 with brakes) are standard
R290 refrigerant
Nominal Compres. of 798 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Automatic off-cycle defrost
Optional Kits: 2.25″ or 6″ casters, overshelves, stainless steel back, drawer divider bars, stainless steel shelf, see spec sheet for additional options
General Specs | |
| Width (in.) | 48 |
| Depth (in.) | 30 |
| Height (in.) | 33.75 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 52.5 |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | UR48B |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 52.5 |
| Shipping Height (in.) | 36.5 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Overall Height (in.) | 33.75 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 1.05 |
| Heat Rejection (BTU/Hr.) @NSF | 278 |
| Approximate Nominal Compres. BTU/HR (HP) | 798(1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.1 oz) |
| Interior Storage Capacity (CF) (AHAM) | 12 ft3 |
| Door Opening Width x Height | 19.5” x 23” |
| Depth with Drawer Fully Open (including 1” bumper) | 52.5 |
| Depth with Drawer Fully Open (including 1” bumper) | 52” |
| Adjustable shelves / Shelf Dimensions (W x D) | 1 / 21.5” x 16” |
