Product Dimensions 79.5"h x 55"w x 35"d

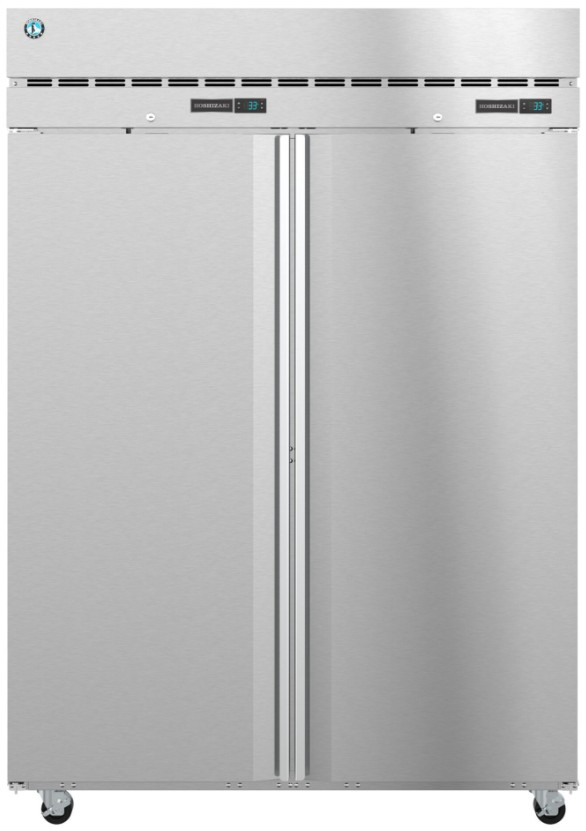

The DT2A-FS Steelheart Series Dual Temp two section refrigerator and freezer with full stainless doors is a space saving workhorse. EverCheck digital control system with audio and visual alarms with a interior capacity of 23.1 cubic feet refrigerator, 23.1 cubic feet freezer this efficient dual temp refrigerator and freezer.Read More
or
Interior capacity of 10.19 cubic feet refrigerator, 10.9 cubic feet freezer
Exclusive “stepped” door design to protect recessed door gasket
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life for extended life
Stainless steel exterior
Field reversible, spring assisted self closing doors with stay open feature (no kit required)
One piece, full door length, extruded aluminum flush mount door handle
Energy efficient thermostatic expansion valve self contained refrigeration system
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
EverCheck digital control system with audio and visual alarms
R-290 refrigerant
Standard with (4) 4″ Stem Casters (2 with brakes)
Includes 6 epoxy coated wire coated shelves
Optional Kits: 6″ legs, epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, stainless steel back
Nominal Compres. of 770 BTU/hr at 1/4 HP refrigerator and 1425 BTU/hr at 3/4 HP freezer
115v/60/1, 10 ft. cord and plug
Top mounted energy efficient non-electric evaporation system
General Specs | |
| Width (in.) | 55 |
| Depth (in.) | 35 |
| Height (in.) | 79.5 |
| Freezer Capacity (cu. ft.) | 10.9 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 59.25 |
| Door Color | Stainless Steel |
| Handle Color | Stainless Steel |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Fingerprint Resistant Finish | No |
| Collection Code | DT2A |
| Door Panel Type | Solid |
| Ice Maker | No |
| Door Swing Option | Double Doors |
| Depth Type | Standard Depth |
| Ice/Water Dispenser | No |
| Number of Doors | 2 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | No |
| Custom Panel Ready | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 36.5 |
| Shipping Width (in.) | 58.25 |
| Shipping Height (in.) | 81 |
| Voltage | 104-126 |
| Amp | 5.5 |
| Refrigeration General Features | LED Light, Wheels, Digital Temperature Control |
| Overall Height (in.) | 79.5 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 20.0 Amps |
| Electrical Connection (NEMA) | 5-20P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | 33° to 52°F | - 10° to 10°F |
| Energy Consumption (kWh/day) @NSF | 8.59 |
| Heat Rejection (BTU/Hr.) @NSF | 376 | 1401 |
| Approximate Nominal Compres. BTU/HR (HP) | 770 (1/4HP) | 1425 (3/4HP) |
| Amperage | 14 |
| Refrigerant / Charge Amount (oz) | R290 (4.6 oz) | R290 (4.1 oz) |
| Shelf Dimensions (W x D) | 21.25” x 26” |
| Crated Weight | 634 lbs. |
| Crated Length x Width x Height | 58” x 37.5” x 81” |
| Door Opening Width x Height | 21.75” x 59.25” |
| Voltage Range | 104-126 |
