Product Dimensions 31.9"h x 60"w x 30"d

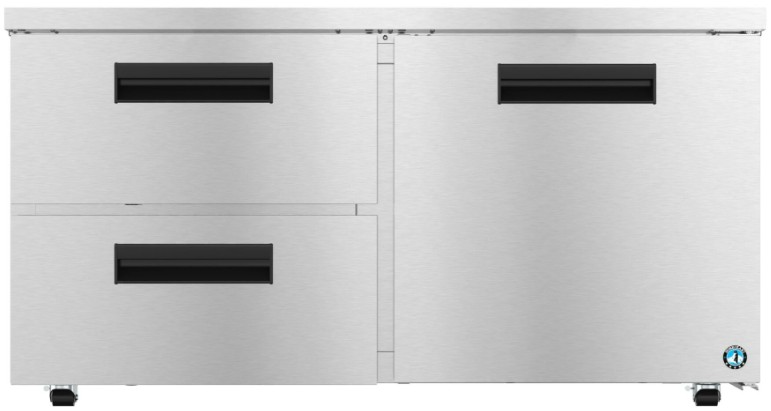

The UR60B-LPD2 Steelheart Series Undercounter two section low profile refrigerator with drawer/door combo is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 15.1 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer/door handles
(1) stainless steel door and (1) stainless steel drawers
Insulated with 2″ CFC free, foamed in place polyurethane
(1) epoxy coated wire shelf and (1) stainless steel drawers each with (1) divider bar
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 2.25″ Stem Casters (2 with brakes) are standard
At only 31.9″ tall, Low Profile Refrigerator is ADA compliant
Nominal Compres. of 1354 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Optional Kits: 4″ or 6″ casters, over shelves (single or double), stainless steel back, drawer divider bars (vertical or horizontal), foot pedal kit (left or right hinge), see spec sheet for additional options
General Specs | |
| Width (in.) | 60 |
| Depth (in.) | 30 |
| Height (in.) | 31.9 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | UR60B |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Ice Maker | No |
| Door Swing Option | Drawer |
| Depth Type | Counter Depth |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | Yes |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 62.5 |
| Shipping Height (in.) | 35.5 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Overall Height (in.) | 31.9 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 0.94 |
| Heat Rejection (BTU/Hr.) @NSF | 249 |
| Approximate Nominal Compres. BTU/HR (HP) | 1354(1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.3 oz) |
| Interior Storage Capacity (CF) (AHAM) | 15.1 ft3 |
| Drawer Opening Width x Height | 25.5” x 23” |
| Depth with Door Fully Open (including 1” bumper) | 57.5” |
| Depth with Drawer Fully Open (including 1” bumper) | 51” |
| Adjustable shelves / Shelf Dimensions (W x D) | 2 / 27.25” x 16” |
