Product Dimensions 31.9"h x 60"w x 30"d

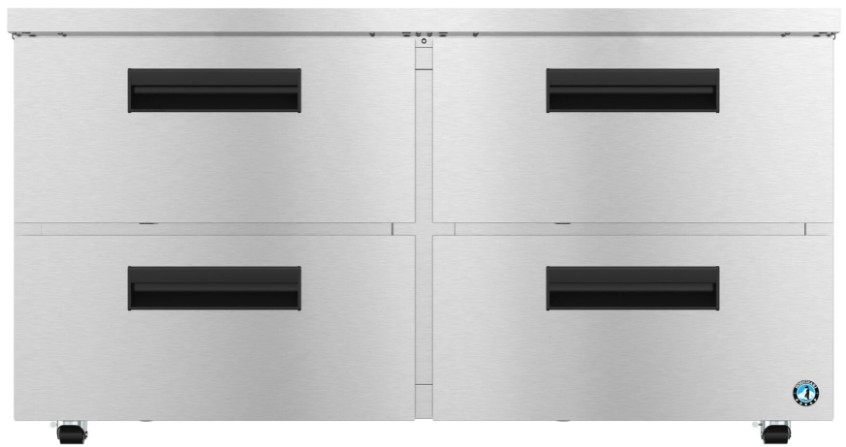

The UR60B-LPD4 Steelheart Series Undercounter two section low profile refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 15.1 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer/door handles
(4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 2.25″ Stem Casters (2 with brakes) are standard
At only 31.9″ tall, Low Profile Refrigerator is ADA compliant
Nominal Compres. of 1354 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Optional Kits: 4″ or 6″ casters, overshelves (single or double), stainless steel back, drawer divider bars (vertical or horizontal)
Drawers Capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others)
General Specs | |
| Width (in.) | 60 |
| Depth (in.) | 30 |
| Height (in.) | 31.9 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | UR60B |
| Color/Finish Name | Stainless Steel |
| Ice Maker | No |
| Depth Type | Counter Depth |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | Yes |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 62.5 |
| Shipping Height (in.) | 35.5 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Overall Height (in.) | 31.9 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 0.94 |
| Heat Rejection (BTU/Hr.) @NSF | 249 |
| Approximate Nominal Compres. BTU/HR (HP) | 1354(1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.3 oz) |
| Interior Storage Capacity (CF) (AHAM) | 15.1 ft3 |
| Drawer Opening Width x Height | 25.5” x 23” |
| Depth with Drawer Fully Open (including 1” bumper) | 51” |
