Product Dimensions 44.25"h x 72"w x 30"d

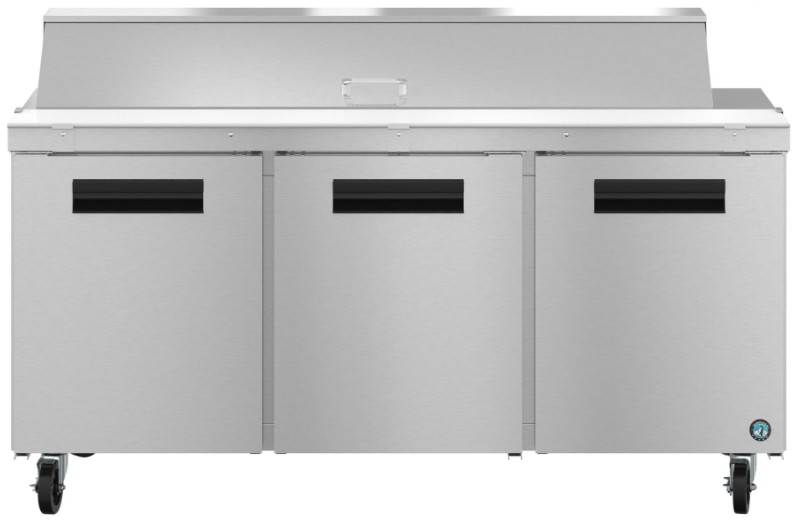

The SR72B-18 Steelheart Series Sandwich three section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 18 cubic feet this efficient sandwich refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
Insulated with 2″ CFC free, foamed in place polyurethane
(3) stainless steel doors with ABS interior liner
(3) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 100°F ambient conditions
72″ x 10″ x 0.5″ thick white polyethylene cutting board is standard
Nominal Compres. of 2431 BTU/hr at 1/3 HP
115v/60/1, 10 ft. cord and plug
Automatic time-initiated heated defrost
R290 refrigerant
(4) 6" Stem Casters (2 with brakes) are standard
Includes (12) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
General Specs | |
| Width (in.) | 72 |
| Depth (in.) | 30 |
| Height (in.) | 44.25 |
| Total Capacity (cu. ft.) | 21 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 52.5 |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Fingerprint Resistant Finish | No |
| Collection Code | SR72B |
| Door Panel Type | Solid |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Ice/Water Dispenser | No |
| Defrost System | Automatic |
| Number of Doors | 3 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | No |
| Custom Panel Ready | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 32 |
| Shipping Width (in.) | 73.75 |
| Shipping Height (in.) | 46.5 |
| Voltage | 104-126 |
| Amp | 4 |
| Type of Refrigerator | Bottom Freezer Refrigerator |
| Defrost Type | Auto Defrost |
| Overall Height (in.) | 44.25 |
| Freezer Door Type | Pull Out Drawer |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115v/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 5.05 |
| Heat Rejection (BTU/Hr.) @NSF | 719 |
| Approximate Nominal Compres. BTU/HR (HP) | 2431 (1/3HP) |
| Voltage Range | 104 to 126 |
| Refrigerant / Charge Amount (oz) | R290 (2.6oz) |
| Door Opening | 19.5″ W x 23″ H |
