Product Dimensions 33.75"h x 72"w x 30"d

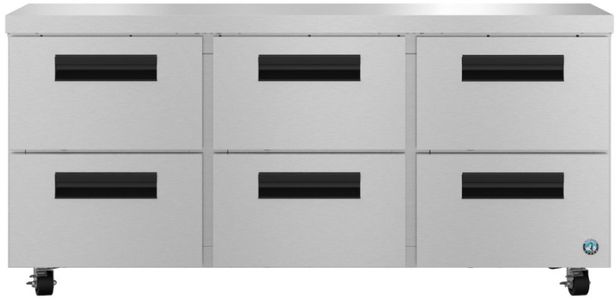

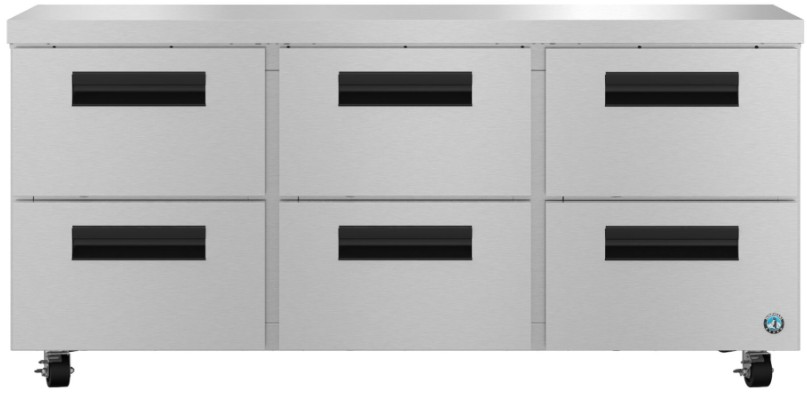

The UR72B-D6 Steelheart Series Undercounter three section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 18 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(6) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Nominal Compres. of 1354 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Automatic off-cycle defrost
Optional Kits: 2.25″ or 6″ casters, overshelves, stainless steel back, drawer divider bars
Drawers Capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
General Specs | |
| Width (in.) | 72 |
| Depth (in.) | 30 |
| Height (in.) | 33.75 |
| Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | UR72B |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Defrost System | Automatic |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 32 |
| Shipping Width (in.) | 73.75 |
| Shipping Height (in.) | 36.5 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Overall Height (in.) | 33.75 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 1.12 |
| Heat Rejection (BTU/Hr.) @NSF | 360 |
| Approximate Nominal Compres. BTU/HR (HP) | 1354(1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.6 oz) |
| Interior Storage Capacity (CF) (AHAM) | 18 ft3 |
| Depth with Drawer Fully Open (including 1” bumper) | 52” |
