Product Dimensions 44.25"h x 72"w x 34"d

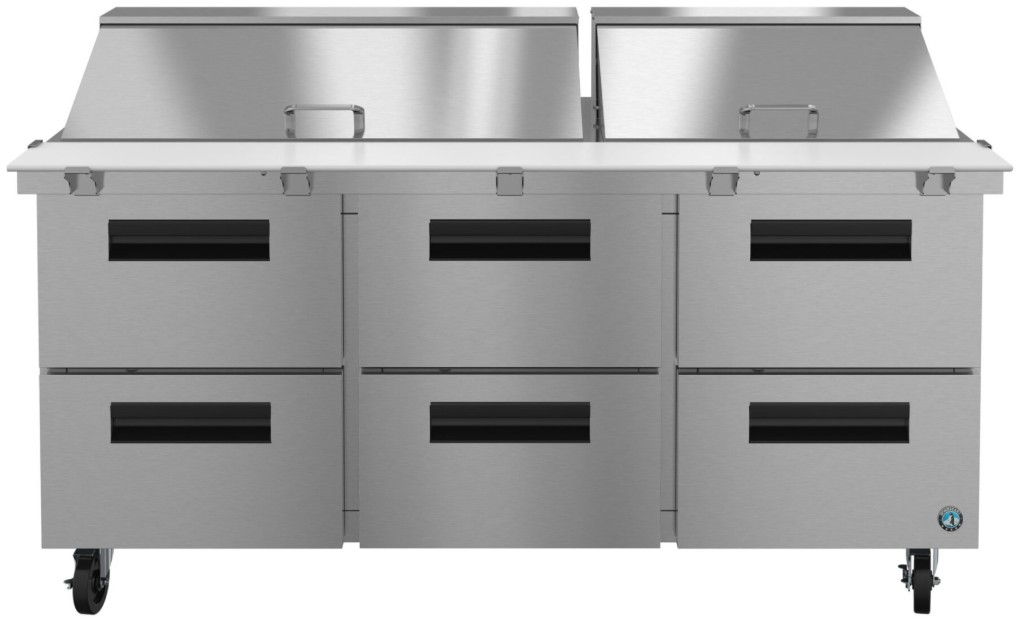

The SR72B-30MD6 Steelheart Series Mega Top three section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 18 cubic feet this efficient mega top refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
The SR72B-30MD6 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The SR72B-30MD6 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 6″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 5.05 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. 72″ x 10″ x 0.5″ thick white polyethylene cutting board is standard. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Net capacity of 18 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handle
(6) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 6″ Stem Casters (2 with brakes) are standard
Includes (30) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.05 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Nominal Compres. of 2431 BTU/hr at 1/3 HP, Heat Rejection: 719 BTU/hr
Nominal storage capacity: 21.25 ft3, Interior storage capacity: 18 ft3, Drawer opening: ” W x ” H, Depth with drawer fully extended: 52″ D, Drawers included: 6
General Specs | |
| Width (in.) | 72 |
| Depth (in.) | 34 |
| Height (in.) | 44.25 |
| Total Capacity (cu. ft.) | 21.25 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 51 |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Year Warranty on Labor, Parts, & Compressor |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 72 |
| Ice Maker | No |
| Door Swing Option | Drawer |
| Depth Type | Standard Depth |
| Defrost System | Automatic |
| Number of Doors | 6 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 73.75 |
| Shipping Width (in.) | 36 |
| Shipping Height (in.) | 46.5 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 4 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 44.25 |
| Freezer Door Type | Pull Out Drawer |
| Garage Ready | No |
