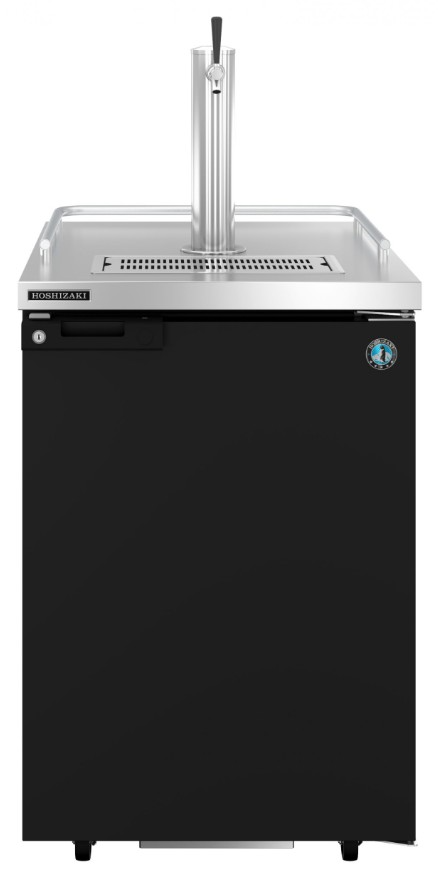

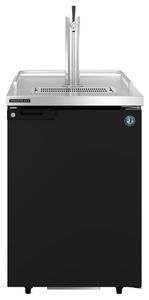

The DD24 Back Bar direct draw is a single section refrigerator with a solid door is the perfect portable kegreator for any operation. It boasts an impressive net capacity of 7.46 cubic feet.Read More
or
One piece, vinyl coated steel handle with built-in lock
(1) polished stainless steel insulated tower with (1) plated brass faucet
Lockable swing door is insulated with environmentally friendly, CFC free foamed in place polyurethane
Rear breathing with internal drain, internal CO2 chain harness, and knockouts for gas line of for plumbing drain to outside of unit
Black Vinyl exterior front, sides and rear, plus a 18 gauge stainless steel top
Brushed aluminum glass rail for mug storage on top
R290 refrigerant
Automatic “off cycle” defrost cycle
Cabinets walls and doors well insulated (2″ thick) and are designed to maintain interior temperatures between 33°F to 38°F
Includes (1) keg cushion to protect floor and allow air to circulate below kegs
Standard with (4) 4″ Casters (front 2 with brakes)
Includes (1) keg cushion to protect floor and allow air to circulate below kegs
Stainless steel interior with reinforced threshold protects cabinet from loading/unloading keg damage
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.32 Watts, Amperage: 1.5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 38°F, Refrigerant: R290
Nominal Compres. of 1056 BTU/hr at 1/6 HP, Heat Rejection: 1056 BTU/hr
Interior Storage Capacity: 7.46ft3, Door Opening: 24.88″ W x 39.38″ H , Depth with Door fully extended: 53.625″ D, Keg Cushions Included: 1
General Specs | |
| Width (in.) | 24.88 |
| Depth (in.) | 30 |
| Manufacturer Warranty | 3 Years Parts & Labor / 5 Years Compressor |
| Door Swing Option | Right Hinge |
| Color | Black Stainless Steel |
| Door Color | Black Vinyl |
| Shipping Depth (in.) | 29 |
| Shipping Width (in.) | 34.5 |
| Shipping Height (in.) | 45.5 |
| Series | Back Bar |
| Door Panel Type | Solid |
| Installation Type | Freestanding |
| Overall Height (in.) | 39.38 |
| ADA Compliant | No |
| Appliance Fit Width (in.) | 24.88 |
| ENERGY STAR Certified | No |
| Smart Compatible | No |
| Casters/Wheels | Yes |
| Total Capacity (cu. ft.) | 7.46 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 1.5 |
| Control Type | Lever |
