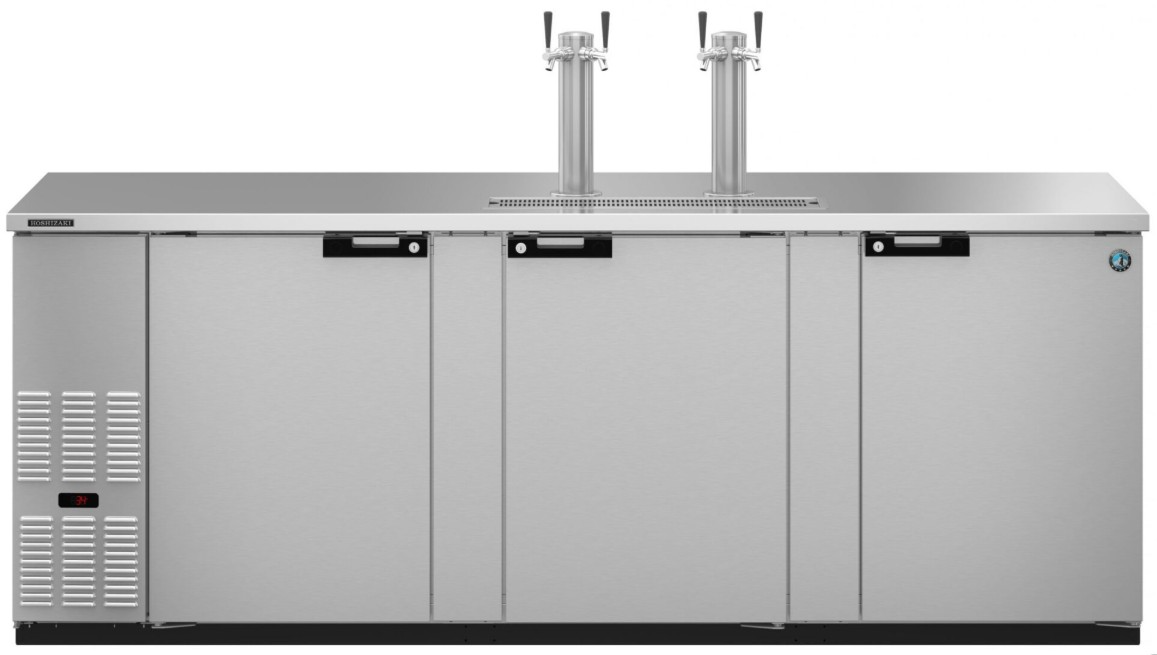

Hoshizaki Back Bar 96" 32.5 Cu. Ft. Stainless Steel Three Section Direct Draw Refrigerator

Product Overview

One piece, vinyl coated steel handle with built-in lock

(2) polished stainless steel insulated towers with (4) plated brass faucets

Self-closing doors come standard with barrel locks

Front breathing, side mount refrigeration that distributes air from left to right rather than from back to front

Black Vinyl exterior front, sides and rear, plus a 18 gauge stainless steel top

Stainless steel interior with LED lights

R290 refrigerant

Automatic “off cycle” defrost cycle

Fits: (5) 1/2 Barrels (Keg)

Electronic controller with LED display (°F or °C)

Cabinets walls and doors well insulated (2″ thick) and are designed to maintain interior temperatures between 33°F to 38°F

Thick stainless steel thresholds protect door frames when loading and unloading cabinet

Includes (5) keg cushions to protect floor and allow air to circulate below kegs

Electrical Specs

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: N/A Watts, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A

Operating Limits

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 38°F, Refrigerant: R290

Refrigeration Data

Nominal Compres. of N/A BTU/hr at 1/3 HP, Heat Rejection: 2345 BTU/hr

Storage Specifications

Interior Storage Capacity: 32.53ft3, Door Opening: 95.5″ W x 36.88″ H , Depth with Door fully extended: 51.13″ D, Keg Cushions Included: 5
