Product Dimensions 39"h x 24"w x 28"d

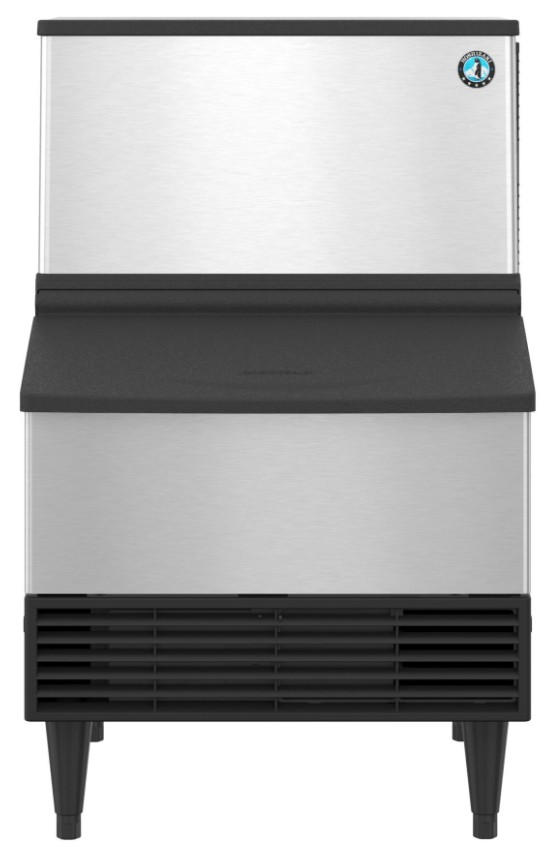

The KM-231BAJ is capable of producing approximately 213 lbs of crescent cubed ice. This undercounter air-cooled, built in storage bin icemaker stores up to 80 lbs of ice, which makes it ideal for small bars, hotel lobbies, and office break rooms.Read More
or
Up to 213 lbs of ice produced per 24 hours
Up to 80 lbs of built-in storage capacity (2.7ft3)
Produces crescent shaped ice cubes
EverCheck™ alert system and CycleSaver™ design
Ice bin opening is ADA compliant
R-404A refrigerant (11.3 oz. / 320 g)
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 6.5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3750 BTU/hr, Refrigerant Charge: R-404A, (11.3 oz. / 320 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
8.4 kWh per 100 lbs @ 90/70, 23.5 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 28 |
| Height (in.) | 39 |
| Color | Stainless Steel |
| Door Color | Black |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 39 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 213 |
| Width (in.) | 24 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Compressor, Air-Cooled Condenser Coil |
| Outdoor Approved | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 24 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | Yes |
| Locking Door | No |
| Product Weight (lbs.) | 137 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 6.5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Panel |
