Product Dimensions 77"h x 30"w x 28"d

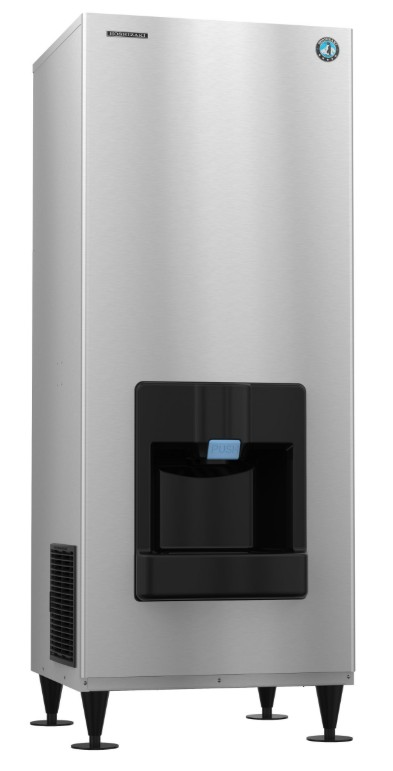

The DKM-500BAJ is capable of producing approximately 545 lbs of crescent cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand!Read More
or
Up to 545 lbs of ice produced per 24 hours
Up to 140 lbs of built-in storage capacity (6.7ft3)
Push button operated, 13 lbs of crescent cube ice/min
Durable, attractive one piece stainless steel exterior
Ice dispensing height is ADA compliant
CycleSaver™ design
Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 13.5, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 9100 BTU/hr, Refrigerant Charge: R-404A, ( 1 lbs. 12.2 oz. / 800 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT x2 Drain, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
5.56 kWh per 100 lbs @ 90/70, 16.6 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 28 |
| Height (in.) | 77 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 77 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 545 |
| Width (in.) | 30 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Hermetic Compressor, Air-Cooled Condenser |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| ADA Compliant | Yes |
| Locking Door | No |
| Product Weight (lbs.) | 385 |
| Shipping Depth (in.) | 35 |
| Shipping Width (in.) | 35.75 |
| Shipping Height (in.) | 83 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 13.5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
