Product Dimensions 28"h x 30"w x 24.63"d

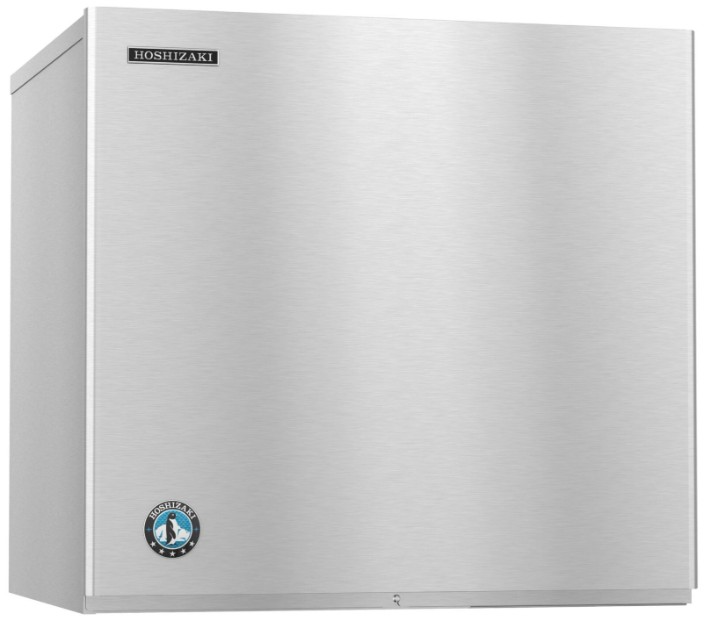

The KMD-860MWJ is capable of producing approximately 940 lbs of crescent cubed ice. The energy efficient KMEdge™ design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more.Read More
or
This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MWJ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Up to 940 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.5, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 11000 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12.2 oz. / 80
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent
3.9 kWh per 100 lbs @ 90/70, 20.5 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 24.63 |
| Height (in.) | 28 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Collection Code | KMD |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 28 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 940 |
| Width (in.) | 30 |
| Manufacturer Warranty | 3 Year Machine Parts & Labor / 5 Year Compressor & Air Cooled Condenser Coil |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 208/230 |
| Frequency | 60 |
| Amp | 8.5A |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
