Product Dimensions 36.44"h x 36"w x 40"d

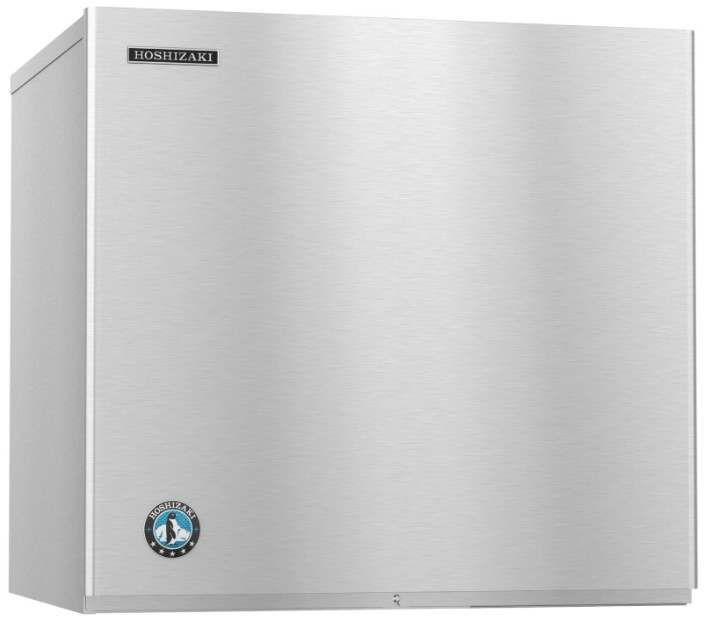

The KMH-2100SWJ3 is capable of producing approximately 2000 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes.Read More
or
It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable, High Capacity, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMH-2100SWJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: Kloppenberg 2115. Please consult the Specification Sheet for additional details.
Up to 2000 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins and dispensers, sold separately: Kloppenberg 2115
Three phase, 208-230v/60/3 4 wire, including ground, Amperage: 10, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 22400 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 1.4 oz. / 140
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Drain Hard Pipe or Equivalent
2.92 kWh per 100 lbs @ 90/70, 15 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 40 |
| Height (in.) | 36.44 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Collection Code | KMH |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 36.44 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 2000 |
| Width (in.) | 36 |
| Manufacturer Warranty | 3 Year Machine Parts & Labor / 5 Year Compressor & Air Cooled Condenser Coil |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 36 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 208/230 |
| Frequency | 60 |
| Amp | 12.5A |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
