Product Dimensions 27.38"h x 48"w x 27.38"d

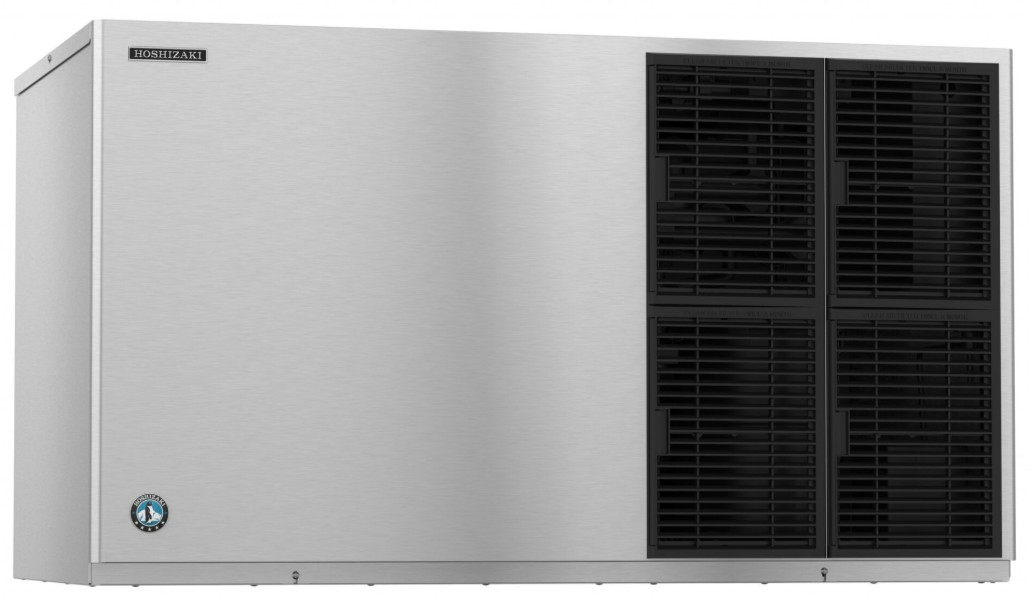

The KM-1301SAJ3 is capable of producing approximately 1427 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.Read More
or
Up to 1427 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Durable stainless steel exterior
EverCheck™ alert system
Produces crescent shaped ice cubes
Compatible bins and dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
CycleSaver™ design
R-404A refrigerant (3 lbs. 15.5 oz. / 1800 g)
Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 9.5, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 18400 BTU/hr, Refrigerant Charge: R-404A, (3 lbs. 15.5 oz. / 18
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
3.95 kWh per 100 lbs @ 90/70, 15.6 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 27.38 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 27.38 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 1427 |
| Width (in.) | 48 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 48 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| ADA Compliant | No |
| Locking Door | No |
| Product Weight (lbs.) | 298 |
| Voltage | 208/230 |
| Frequency | 60 |
| Amp | 9.5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
