Product Dimensions 27.38"h x 48"w x 27.38"d

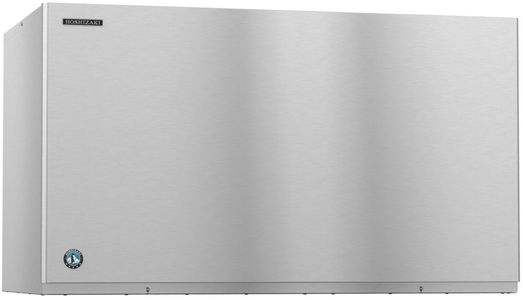

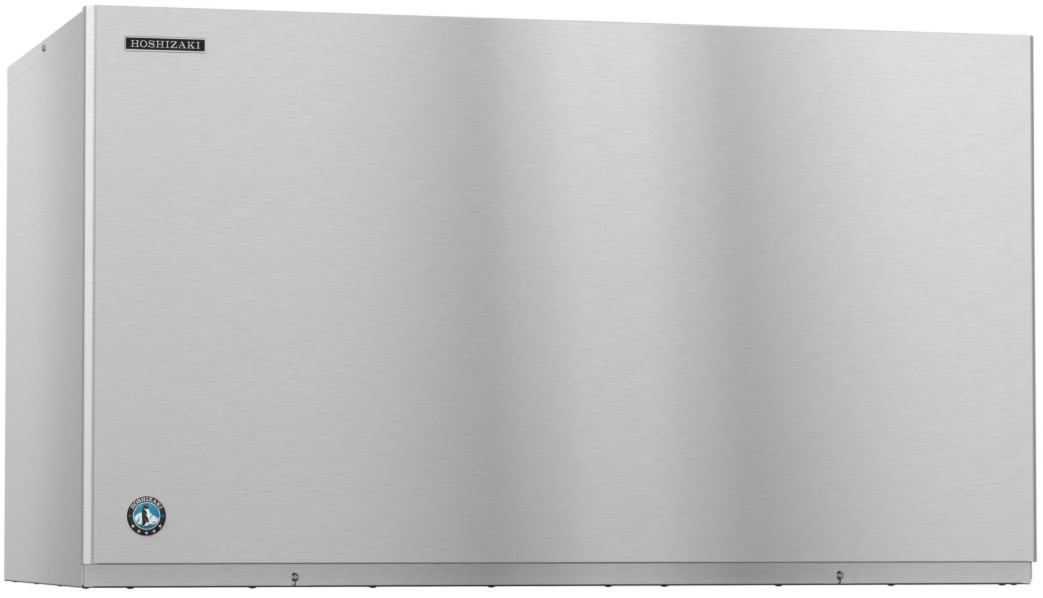

The KM-1601SWJ is capable of producing approximately 1660 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes.Read More
or
It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Water-cooled, Stackable icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1601SWJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Up to 1660 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
Integrated ultrasonic bin control
Simple, one-hour cleaning and assisted cleaning process with CleanAssist
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required, Amperage: 13.6, Max Fuse/HA
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21300 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 10.3 oz. / 12)
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/8″ FPT Outlet, Minimum 3/8″ Nominal ID Hard Pipe or Equivalent, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent
3.3 kWh per 100 lbs @ 90/70, 19.7 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 27.38 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Collection Code | KM |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 27.38 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 1660 |
| Width (in.) | 48 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Compressor & Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 48 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 208/230 |
| Frequency | 60 |
| Amp | 13.6 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
