Product Dimensions 27.38"h x 48"w x 27.38"d

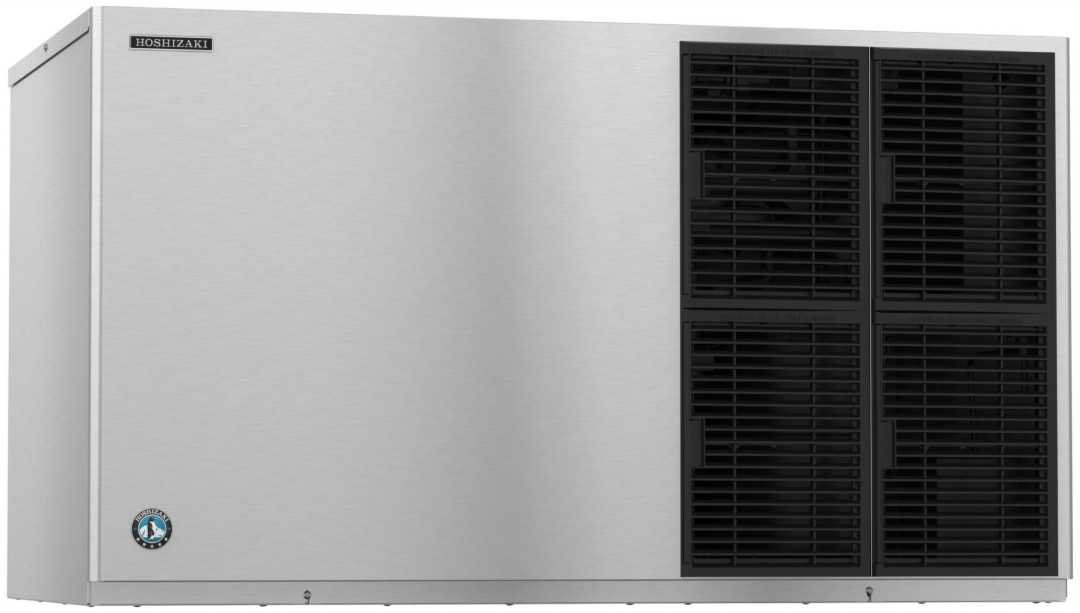

The KM-1301SAJ-E is capable of producing approximately 624 kg of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications.Read More
or
This Air-cooled, Stackable, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ-E has a 50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Up to 624 kg of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (1900 g)
Heat Rejection: 16100 BTU/hr
50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.35, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 70 – 779kpa, Voltage Range: 198 – 254V, Heat Rejection: 16100 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 3 oz. / 1900 g)
1/2″ FPT Inlet, Minimum 10 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
4.52 kWh per 100 lbs @ 90/70, 34.9 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 27.38 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Collection Code | KM |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 27.38 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 624 |
| Width (in.) | 48 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 48 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Left Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 220/240 |
| Frequency | 60 |
| Amp | 11.35 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
