Product Dimensions 31.25"h x 22"w x 18.13"d

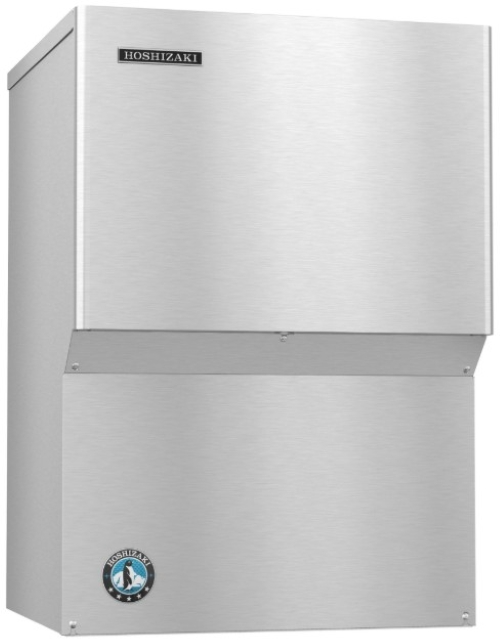

The KMS-1122MLJ is capable of producing approximately 1151 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications.Read More
or
This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-1122MLJ requires a Single phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J Remote Condenser) electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.
Up to 1151 lbs of ice produced per 24 hours
Remote-cooled with SRK-12J
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection: 21300 BTU/hr
Single phase, See Remote Condenser (115V supply for the KMS icemaker is supplied from the 230V SRK-12J Remote Condenser), Amperage: 11.6, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21300 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
4.2 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 18.13 |
| Height (in.) | 31.25 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber Serenity |
| Collection Code | KMS |
| Installation Type | Freestanding |
| Overall Height (in.) | 31.25 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 1151 |
| Width (in.) | 22 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 22 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Right Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 11.6 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
