Product Dimensions 28"h x 22"w x 24.63"d

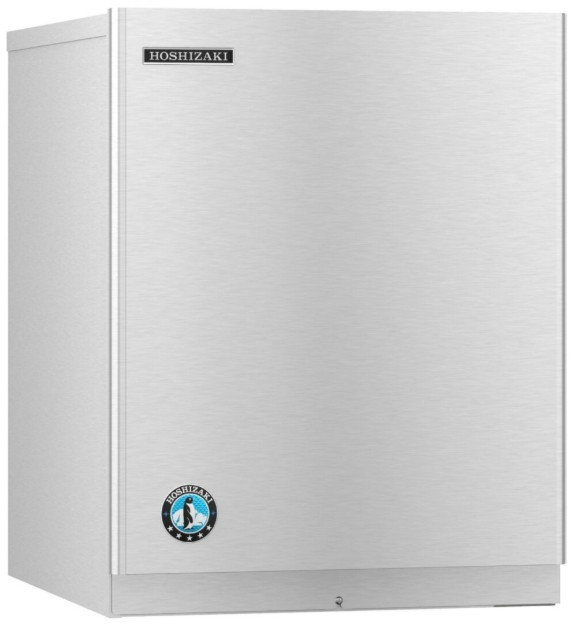

The KMS-822MLJ is capable of producing approximately 851 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporator creates our unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in cafeterias, restaurants, and other foodservice applications.Read More
or
This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMS-822MLJ requires a Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.
Up to 851 lbs of ice produced per 24 hours
Mount units side-by-side for x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: Beverage Dispensers, B-250, BD-300, B-500, B-700, B-800, B-900, DB-200H
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection: 14700 BTU/hr
Single phase, See Remote Condenser, *115V supply for the KMS Icemaker is supplied from the 230V SRK Remote Condenser, Amperage: 11.9, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 14700 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
5.3 kWh per 100 lbs @ 90/70, 21 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 24.63 |
| Height (in.) | 28 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber Serenity |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 28 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 851 |
| Width (in.) | 22 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 22 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Lift Up |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 230 |
| Frequency | 60 |
| Amp | 11.9 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
