Product Dimensions 39.5"h x 19.75"w x 17.75"d

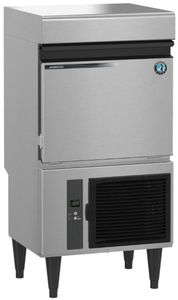

The IM-50BAA-LM is capable of producing approximately 50 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with minimal dilution. This Air-cooled, built-in Storage Bin icemaker features up to 22 lbs of built-in storage capacity* and its small footprint can easily fit under a bar counter.Read More
or
View Options
The IM-50BAA-LM is Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (6.0 oz. / 170 g). Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Up to 50 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity
Produces individual clear, solid 1.9″ x 1.9″ x 2.3″ cubes
Front in, back out airflow
Ice scoop included
Foam injected polyurethane for insulation (HFC free)
Small footprint can easily fit under a bar counter
R-134a refrigerant (6.0 oz. / 170 g)
Heat Rejection:1500 BTU/hr
Single phase, 115v/60/1, 6′ 5″ ft cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (6.0 oz. / 170 g)
1/2″ FPT Inlet, Minimum 1/2″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
15.7 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 17.75 |
| Height (in.) | 39.5 |
| Color | Stainless Steel |
| Door Color | Black |
| Commercial Use Approved | Yes |
| Series | Square Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 39.5 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 50 |
| Width (in.) | 19.75 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 19.75 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Drop Down |
| ADA Compliant | No |
| Locking Door | No |
| Color Finish Name | Stainless Steel |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Nugget |
| Door Panel Type | Panel |
