Product Dimensions 39.5"h x 24.75"w x 20.75"d

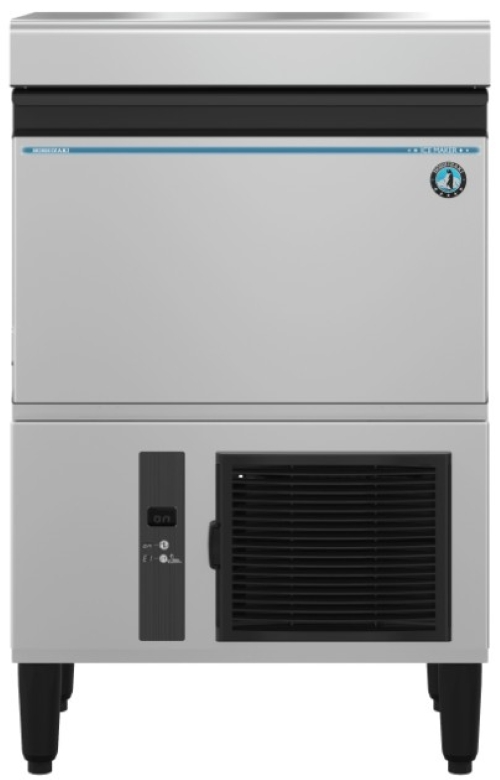

The IM-50BAA-Q is capable of producing approximately 50 lbs of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs of built-in storage capacity (ft3)*.Read More
or
The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Up to 50 lbs or 500 spheres of ice produced per 24 hours
Up to 36 lbs of built-in storage capacity (ft3)
Produces individual sphere cubes
Durable stainless steel exterior
Front in, back out airflow
Ice scoop included
Foam injected polyurethane for insulation (HFC free)
Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
R-134a refrigerant (7.1 oz. / 201 g)
Single phase, 115v/60/1, 6′ 5″ ft cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g)
1/2″ FPT Inlet, Minimum 1/2″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
15.7 kWh per 100 lbs @ 90/70, 69 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 20.75 |
| Height (in.) | 39.5 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Square Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 39.5 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 50 |
| Width (in.) | 24.75 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 24.75 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Drop Down |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Door Panel Type | Panel |
