Product Dimensions 33.5"h x 39.5"w x 23.63"d

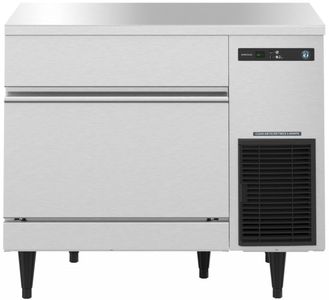

The IM-200BAC is capable of producing approximately 188 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 75 lbs of built-in storage capacity (2.5ft3)*.Read More
or
View Options
The IM-200BAC is a Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug and uses R-404A refrigerant (10.6 oz. / 301 g). Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
Up to 188 lbs of ice produced per 24 hours
Up to 75 lbs of built-in storage capacity (2.5ft3)
Produces individual square cubes
Durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
Each cube is made individually by a dedicated jet spray
Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.
R-404A refrigerant (10.6 oz. / 301 g)
Single phase, 115v/60/1 5′ 7/8″ ft cord with NEMA 5-15 Plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3420 BTU/hr, Refrigerant Charge: R-404A, (10.6 oz. / 301 g)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
8.4 kWh per 100 lbs @ 90/70, 22.5 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 23.63 |
| Height (in.) | 33.5 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Flaker |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 33.5 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 188 |
| Width (in.) | 39.5 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 39.5 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Drop Down |
| ADA Compliant | No |
| Locking Door | No |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 7.6 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Full Size Cubes |
| Door Panel Type | Panel |
