Product Dimensions 21.75"h x 44"w x 27.63"d

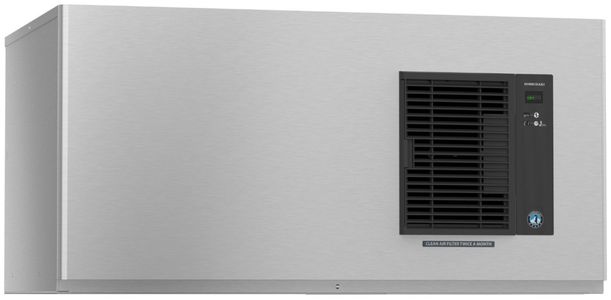

The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair.Read More
or
View Options
The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins and dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Up to 489 lbs of ice produced per 24 hours
Stack 3 units for 3x the ice production
Produces individual square cubes
Durable stainless steel exterior
Compatible bins and dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ digital control system with LED display
Clean individual square ice cubes
Panels easily removed and all components accessible for service
R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
Single phase, 115v/60/1 Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 4500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. / 751)
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
5.8 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.63 |
| Height (in.) | 21.75 |
| Color | Stainless Steel |
| Door Color | Black |
| Commercial Use Approved | Yes |
| Series | Square Cuber |
| Installation Type | Freestanding |
| Overall Height (in.) | 21.75 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 489 |
| Width (in.) | 44 |
| Manufacturer Warranty | 3 Years Parts and Labor on Entire Machine / 5 Years Parts on Compressor |
| Outdoor Approved | No |
| ENERGY STAR Certified | Yes |
| Appliance Fit Width (in.) | 44 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| Door Swing Option | Left Hinge |
| ADA Compliant | No |
| Locking Door | No |
| Color Finish Name | Stainless Steel |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 11.5 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Full Size Cubes |
| Door Panel Type | Panel |
