Product Dimensions 37"h x 38"w x 29"d

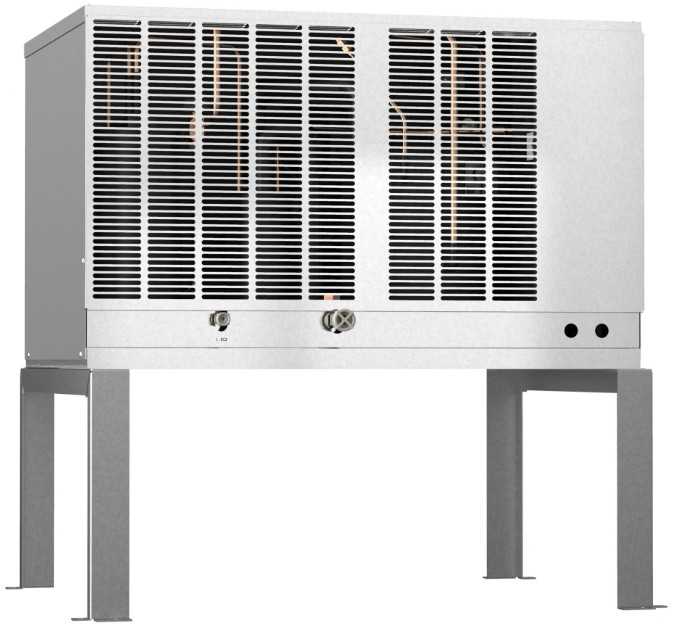

The SRK-10J, SRK Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Brazing and Refrigerant Required (25′, 35′, 55′), tubing kits sold separately.Read More
or
The SRK-10J Remote Condenser operates on Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground), and R-404a refrigerant (13 lbs. 10.7 oz. / 6200 g). Compatible icemakers, sold separately: KMS-822MLJ, KMS-830MLJ. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Remote condenser for KMS-822MLJ, KMS-830MLJ
Quiet operation
Weather resistant cabinet for longer life
Must be hardwired at the site (4 wire, including ground)
Allow 24″ clearance for best performance
Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground)
R-404a refrigerant (13 lbs. 10.7 oz. / 6200 g)
Compatible icemakers, sold separately: KMS-822MLJ, KMS-830MLJ
Icemaker Connection: Single Phase, 208-230v/60/1, Must be hardwired at the site (4 wire, including ground), Must be hardwired at the site (4 wire, including ground)
Brazing & Refrigerant Required Line Kits:, 25′ Length: HS-0250, 35′ Length: HS-0251, 55” Length: HS-0252
Ambient Temp Range: -20 – 122°F, Voltage Range: 187 – 253V, Refrigerant: R-404a
General Specs | |
| Width (in.) | 38 |
| Manufacturer Warranty | 3 Year Machine Parts & Labor / 5 Year Air-Cooled Condenser Coil, & SRK Compressor |
| Depth (in.) | 29 |
| Height (in.) | 37 |
| Color | Stainless Steel |
| Voltage | 208-230 |
| Frequency | 60 |
| Outdoor Approved | No |
| ADA Compliant | No |
| Smart Compatible | No |
| Wifi Capable | No |
| Watersense Certified | No |
