Product Dimensions 33.63"h x 60"w x 30"d

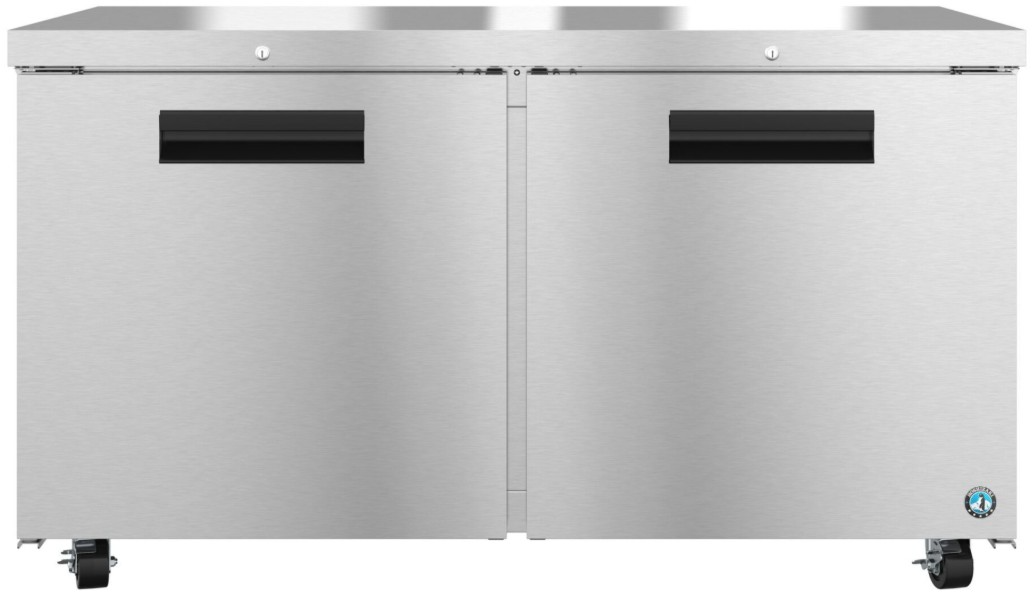

The UF60B-01 Steelheart Series Undercounter two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.27 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens.Read More
or
The UF60B-01 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The UF60B-01 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.95 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Includes cylinder locks (-01) (factory installed). The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Net capacity of 15.27 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
Two (2) stainless steel doors with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
Two (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.95 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +10°F, Refrigerant: R290
Nominal Compres. of 1426 BTU/hr at 1/3 HP, Heat Rejection: 727 BTU/hr
Nominal storage capacity: 17.55 ft3, Interior storage capacity: 15.27 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 58.5″ D, Shelves included: 2
General Specs | |
| Product Weight (lbs.) | 310 |
| Width (in.) | 60 |
| Depth (in.) | 30 |
| Height (in.) | 33.63 |
| Defrost System | Automatic |
| Manufacturer Warranty | 7 Years Labor, Parts, & Compressor |
| Color | Silver |
| Depth w/Door Open 90 Degrees (in.) | 58.5 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Standard Depth |
| Depth Less Door (in.) | 30 |
| Depth Including Handles (in.) | 57.5 |
| Overall Height (in.) | 79.75 |
| Height Without Door/Hinge (Case) (in.) | 30 |
| Collection Code | UF60B |
| Door Panel Type | Solid |
| Garage Ready | No |
| Door Swing Option | Lift Up |
| Collection | Steelheart® |
| ADA Compliant | No |
| ENERGY STAR Certified | Yes |
| Ice Maker | No |
| Appliance Fit Width (in.) | 60 |
| Smart Compatible | No |
| Total Capacity (cu. ft.) | 17.55 |
| Shipping Depth (in.) | 62.5 |
| Shipping Width (in.) | 34 |
| Shipping Height (in.) | 36.5 |
| Voltage | 104–126 |
| Amp | 4 |
| Freezer Features | Temperature Control |
