Product Dimensions 79.5"h x 27.5"w x 33.5"d

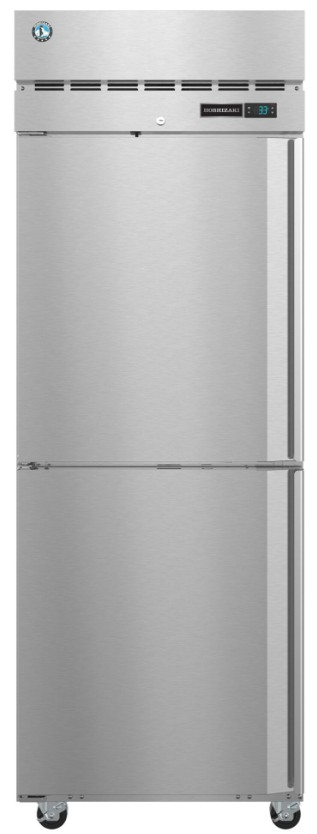

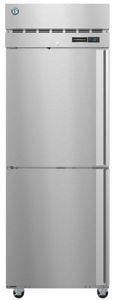

The F1A-HSL Steelheart Series Upright single section freezer with a half stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens.Read More
or
Net capacity of 23.1 cubic feet
Unique “ducted” air distribution system
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
One piece, full door length, extruded aluminum flush mount door handle
Lockable half stainless doors, left hand swing
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
Solid state control system with temperature alarms and LED display (°F or °C)
R290 refrigerant
(4) 4″ Stem casters (2 with brakes) are standard
Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
Top mounted energy efficient non-electric evaporation system
Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.25 kwh/day, Amperage: 8.46, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Nominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 1178 BTU/hr
Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with door fully extended: 59.25″ D, Shelves included: 3
General Specs | |
| Width (in.) | 27.5 |
| Depth (in.) | 33.5 |
| Height (in.) | 79.5 |
| Defrost System | Manual |
| Manufacturer Warranty | 7 Years Labor, Parts & Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 59.25 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Standard Depth |
| Series | Steelheart® |
| Overall Height (in.) | 79.5 |
| Door Panel Type | Solid |
| Garage Ready | No |
| Door Swing Option | Left Hinge |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Appliance Fit Width (in.) | 27.5 |
| Smart Compatible | No |
| Total Capacity (cu. ft.) | 23.1 |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 37.5 |
| Shipping Height (in.) | 81 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 8.46 |
| Freezer Features | LED Light, Door/Child Lock, Digital Temperature Display |
