Product Dimensions 79.5"h x 27.5"w x 34.5"d

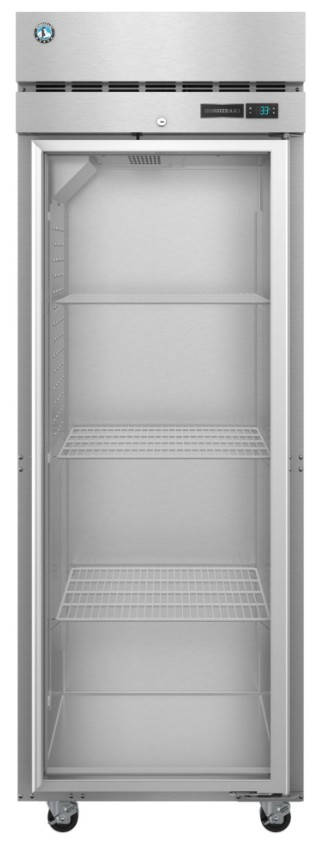

The R1A-FG Steelheart Series Upright single section refrigerator with a full glass door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Net capacity of 23.1 cubic feet
Unique “ducted” air distribution system
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
One piece, full door length, chrome door handle
Lockable full glass doors
Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
Interior LED light bars are vertically mounted on each wall
Solid state control system with temperature alarms and LED display (°F or °C)
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
Top mounted energy efficient non-electric evaporation system
Optional kits: 6″ legs, epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, additional air filter
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.47 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 639 BTU/hr
Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 57″ D, Shelves included: 3
General Specs | |
| Width (in.) | 27.5 |
| Depth (in.) | 34.5 |
| Height (in.) | 79.5 |
| Total Capacity (cu. ft.) | 23.1 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 57 |
| Door Color | Stainless Steel |
| Handle Color | Chrome |
| Manufacturer Warranty | 7 Years Labor, Parts & Compressor |
| Series | Steelheart® |
| Door Panel Type | Glass |
| Appliance Fit Width (in.) | 27.5 |
| Ice Maker | No |
| Door Swing Option | Right Hinge |
| Depth Type | Standard Depth |
| Defrost System | Manual |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 37.5 |
| Shipping Height (in.) | 81 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 5 |
| Type of Refrigerator | Column Refrigerator |
| Defrost Type | Manual Defrost |
| Refrigeration General Features | Self-Closing Door, Wheels, LED Light, Locking Door |
| Overall Height (in.) | 79.5 |
| Garage Ready | No |
