Product Dimensions 40.25"h x 46"w x 33.25"d

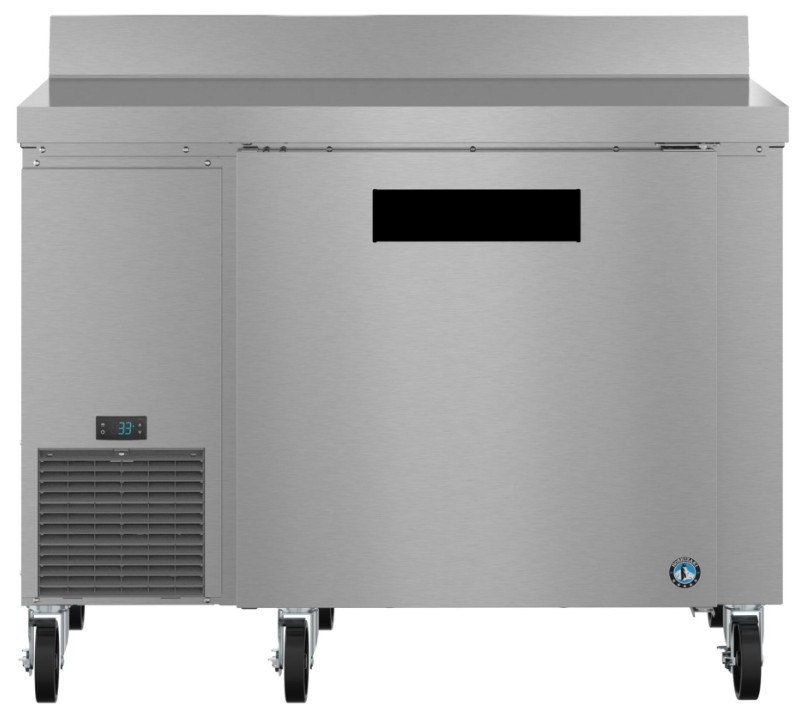

The WLR46B Steelheart series worktop single section side mount refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 11.78 cubic feet this efficient worktop side mount refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Environmentally friendly R290 hydrocarbon refrigerant
Cabinet and doors are insulated with 2” CFC free, foamed in place polyurethane
Exclusive “stepped” door design to protect door gasket
Spring assisted self-closing doors with stay open feature
Extruded aluminum flush mount door handle
Field reversible doors with magnetic snap-in gaskets
Magnetic door gasket is easily removable for cleaning
Removable air filter for easy cleaning
Hot gas condensate removal
E-coated evaporator coil
Two epoxy coated shelves per section is standard
Anodized aluminum shelf supports adjustable in 1/2” increments
(4) 6″ Stem casters (2 with brakes) are standard
10 ft. cord and plug
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.92 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 333 BTU/hr
Nominal storage capacity: 11.78 ft3, Interior storage capacity: 11.78 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 60.5″ D, Shelves included: 2
General Specs | |
| Width (in.) | 46 |
| Depth (in.) | 33.25 |
| Height (in.) | 40.25 |
| Total Capacity (cu. ft.) | 11.78 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 60.5 |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Parts, Labor & Compressor |
| Series | Steelheart® |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 46 |
| Ice Maker | No |
| Door Swing Option | Right Hinge |
| Depth Type | Counter Depth |
| Defrost System | Automatic |
| Number of Doors | 1 |
| ENERGY STAR Certified | Yes |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 48.75 |
| Shipping Width (in.) | 34.75 |
| Shipping Height (in.) | 40 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Depth Less Door (in.) | 25.5 |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels, Self-Closing Door |
| Overall Height (in.) | 40 |
| Height Without Door/Hinge (Case) (in.) | 36 |
| Garage Ready | No |
