Product Dimensions 79.5"h x 55"w x 37.75"d

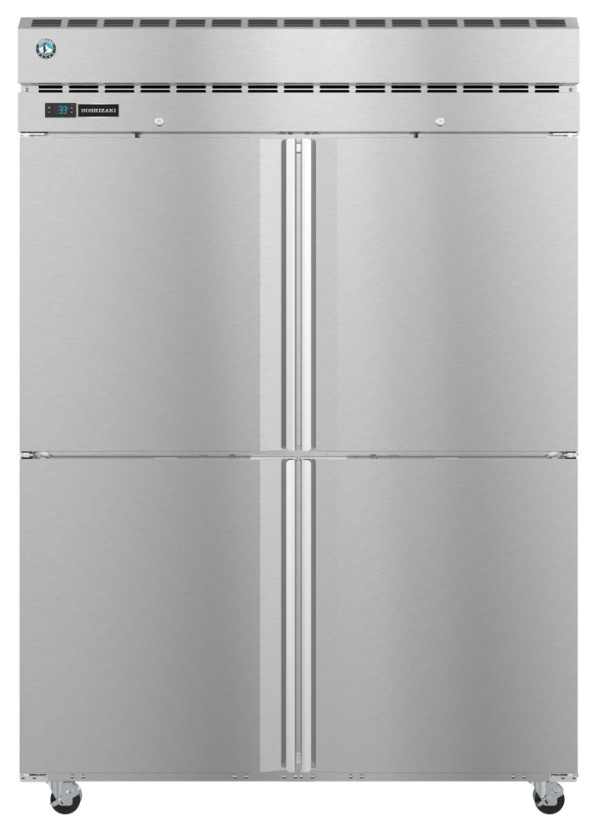

The PT2A-HS-HS Steelheart Series Pass Thru two section refrigerator with half stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 52.5 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
or
Interior capacity of 52.5 cubic feet
Unique “ducted” air distribution system
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
One piece, full door length, extruded aluminum flush mount door handle
Lockable half stainless doors
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
Solid state digital controller with temperature alarms and LED display (°F or °C)
R290 refrigerant
(6) 4″ Stem casters (3 with brakes) are standard
Includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
Top mounted energy efficient non-electric evaporation system
Optional kits: 6″ legs, epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, additional air filter
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.24 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Nominal Compres. of 1545 BTU/hr at 1/2 HP, Heat Rejection: 1429 BTU/hr
Interior storage capacity: 52.5 ft3, Door opening: 21.75″ W x 27.75″ H, Depth with both doors fully extended: 87.25″ D, Shelves included: 6
General Specs | |
| Width (in.) | 55 |
| Depth (in.) | 37.75 |
| Height (in.) | 79.5 |
| Defrost System | Manual |
| Manufacturer Warranty | 7 Years Labor, Parts & Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 87.25 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Standard Depth |
| Series | Steelheart® |
| Overall Height (in.) | 79.5 |
| Door Panel Type | Solid |
| Garage Ready | No |
| Door Swing Option | Double Doors |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Appliance Fit Width (in.) | 55 |
| Smart Compatible | No |
| Total Capacity (cu. ft.) | 52.5 |
| Shipping Depth (in.) | 38.5 |
| Shipping Width (in.) | 58 |
| Shipping Height (in.) | 81 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 8 |
| Freezer Features | LED Light, Door/Child Lock, Digital Temperature Display, Temperature Control |
