Product Dimensions 79.5"h x 27.5"w x 33.5"d

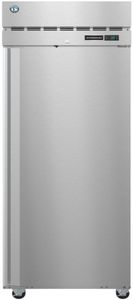

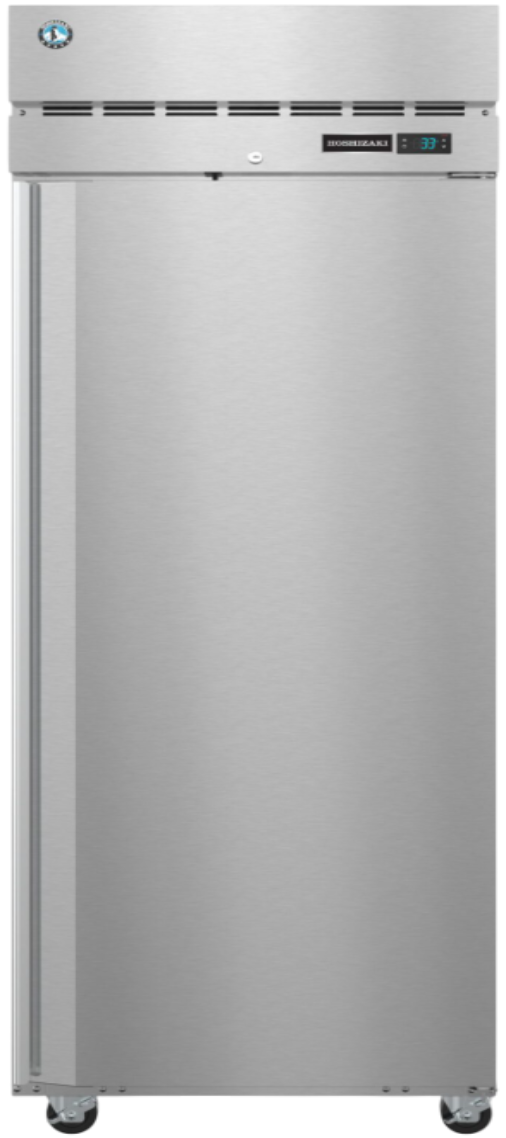

The R1A-FS Steelheart Series Upright single section refrigerator with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design.Read More
or
The R1A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.25 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Maximum interior storage capacity with smallest external footprint
Stainless steel interior with stainless steel exterior front, sides and top
Unique ducted air distribution system
Energy efficient interior LED light
Environmentally friendly R290 hydrocarbon refrigerant
Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
Cabinet and doors are insulated with 2-3/8" of CFC free, foamed in place polyurethane
Stainless steel exteriolr and interior door come standard iwth locks
Exclusive stepped door design to protect recessed door gasket
Spring assisted self-closing doors with stay open feature
Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
Extruded aluminum flush mount door handle
Field reversible doors
Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
Energy efficient automatic hot gas condensateevaporator
Top mount refrigeration comes standard with a condenser filter
Refrigerant flow is controlled with thermostatic expansion valve
Stainless steel shelf supports
(3) epoxy coated wire shelves are standard
Standard with 4” casters (two with brakes)
Stackable (two units high) to conserve warehouse floor space
10 feet cord and plug
*Refrigerator only, any other products that may be displayed are sold separately. Images may not represent the actual size and color in images may differ in person. See store for the actual color or finish.
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 feet cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 317 BTU/hr
Nominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 3
General Specs | |
| Product Weight (lbs.) | 357 |
| Width (in.) | 27.5 |
| Depth (in.) | 33.5 |
| Height (in.) | 79.5 |
| Total Capacity (cu. ft.) | 23.1 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 87.25 |
| Door Color | Stainless Steel |
| Handle Color | Gray |
| Manufacturer Warranty | 7 Years: Labor, Parts, Compressor |
| Fingerprint Resistant Finish | No |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 27.5 |
| Ice Maker | No |
| Door Swing Option | Right Hinge |
| Depth Type | Standard Depth |
| Collection | Steelheart® Reach-Ins |
| Ice/Water Dispenser | No |
| Defrost System | Automatic |
| Number of Doors | 2 |
| ENERGY STAR Certified | Yes |
| Commercial Use Approved | Yes |
| Custom Panel Ready | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 33.5 |
| Shipping Width (in.) | 31.5 |
| Shipping Height (in.) | 81 |
| Voltage | 115 |
| Amp | 15 |
| Type of Refrigerator | Column Refrigerator |
| Depth Less Door (in.) | 33.5 |
| Depth Excluding Handles (in.) | 33.5 |
| Depth Including Handles (in.) | 59.25 |
| Defrost Type | Frost Free |
| Refrigeration General Features | LED Light, Wheels, Digital Temperature Control |
| Overall Height (in.) | 79.5 |
| Height Without Door/Hinge (Case) (in.) | 79.5 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
