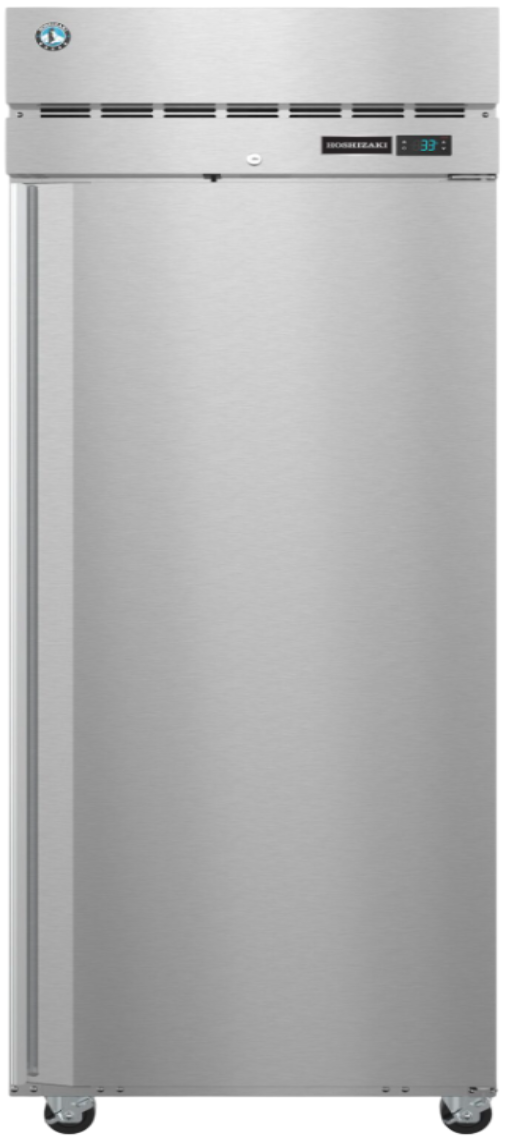

Hoshizaki Steelheart® Reach-Ins 28" 24.2 Cu. Ft. Stainless Steel Single Section Pass Thru Upright Refrigerator with Lock

Product Overview

The PT1A-FS-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The PT1A-FS-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4" stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit required). Electrical consumption of 1.31 kwh/day at 5 amps, 10 feet long cord with a 5 - 15P NEMA plug. Optional kits: 6" Legs, Epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts).

Engineered to maintain NSF-7 temperatures in 100°F ambient. (Certified to NSF-7 temperatures in 86°F ambient.

Stainless steel interior with stainless steel exterior front, sides and top

Unique ducted air distribution system

Energy efficient interior LED light

Environmentally friendly R290 hydrocarbon refrigerant

Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)

Maximum interior storage capacity with smallest external footprint

Exclusive stepped door design to protect recessed door gasket

Spring assisted self-closing doors with stay open feature

Sturdy 8 gauge stainless steel hinge plate with welded hinge pin

Extruded aluminum flush mount door handle

Field reversible doors

Doors and cabinet are insulated with 2-3/8” of CFC free,foamed in place polyurethane

Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion

Energy efficient automatic hot gas condensateevaporator

Top mount refrigeration comes standard with a condenser filter

Refrigerant flow is controlled with thermostatic expansion valve

Stainless steel shelf supports

(3) epoxy coated wire shelves are standard

Standard with 4” casters (two with brakes)

10 feet cord and plug

*Refrigerator only, any other products that may be displayed are sold separately. Images may not represent the actual size and color in images may differ in person. See store for the actual color or finish.

Electrical Specs

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 feet cord and plug, Energy Consumption: 1.31 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A

Operating Limits

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290

Refrigeration Data

Nominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 348 BTU/hr

Storage Specifications

Interior storage capacity: 24.2 feet 3, Door opening: 21.75″ W x 59.25″ H, Depth with both doors fully extended: 87.25″ D, Shelves included: 3
