Product Dimensions 31.9"h x 36"w x 31"d

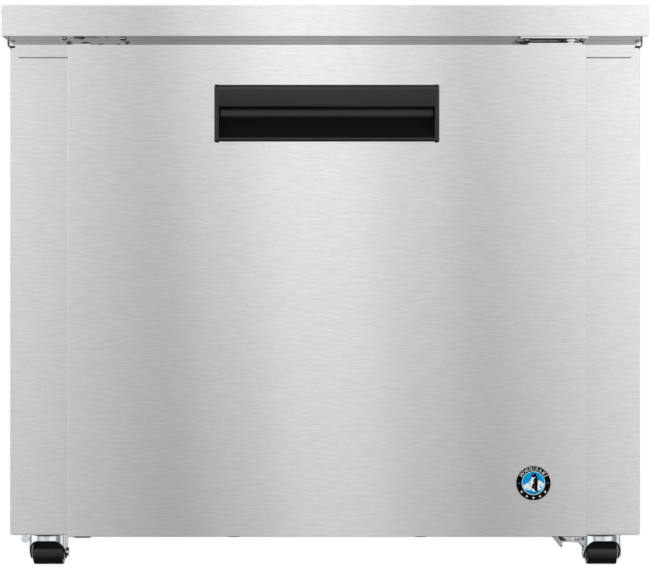

The UR36B-LP Steelheart Series Undercounter single section low profile refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.64 cubic feet this efficient undercounter low profile refrigerator and front air flow design.Read More
or
The UR36B-LP also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 2.25″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.69 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves (single or double), Lock, See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Specifically designed to fit under an ADA compliant 34" work surface height counter
Engineered to maintain NSF-7 temperatures in 100° F ambient
Stainless steel exterior front, sides and top with stainless steel interior sides, back, and floor
Environmentally friendly R290 hydrocarbon refrigerant
Cabinet and door are insulated with 2" of CFC free, foamed in place polyurethane
Innovative air distribution system distributes air evenly to maintain product temperature
Exclusive "stepped" door design to protect door gasket
Spring assisted self-closing door with stay open feature
Extruded aluminum flush mount door handle
Magnetic door gasket is easily removeable for cleaning
Field reversible door
Hot gas condensate removal
E-coated evaporator coil
Anodized aluminum shelf supports adjustable in 1/2" increments
Standard with 2.25” casters (two with brakes)
10 feet cord and plug
*Refrigerator only, any other products that may be displayed are sold separately. Images may not represent the actual size and color in images may differ in person. See store for the actual color or finish.
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.69 kwh/day, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Nominal Compres. of 988 BTU/hr at 1/6 HP, Heat Rejection: 184 BTU/hr
Nominal storage capacity: 8.64 ft3, Interior storage capacity: 8.64 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 57.5″ D, Shelves included: 1
General Specs | |
| Product Weight (lbs.) | 204 |
| Width (in.) | 36 |
| Depth (in.) | 31 |
| Height (in.) | 31.9 |
| Freezer Capacity (cu. ft.) | 8.64 |
| Total Capacity (cu. ft.) | 8.64 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 57.5 |
| Door Color | Stainless Steel |
| Handle Color | Gray |
| Manufacturer Warranty | 7 Years: Labor, Parts, Compressor |
| Fingerprint Resistant Finish | No |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 36 |
| Ice Maker | No |
| Door Swing Option | Left Hinge |
| Depth Type | Counter Depth |
| Collection | Steelheart® Reach-Ins |
| Ice/Water Dispenser | No |
| Defrost System | Automatic |
| Number of Doors | 1 |
| ENERGY STAR Certified | Yes |
| Commercial Use Approved | Yes |
| Custom Panel Ready | Yes |
| Installation Type | Freestanding |
| ADA Compliant | Yes |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 40.5 |
| Shipping Height (in.) | 35.5 |
| Voltage | 115 |
| Amp | 15 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Depth Less Door (in.) | 30 |
| Depth Excluding Handles (in.) | 30 |
| Depth Including Handles (in.) | 31 |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 31.9 |
| Height Without Door/Hinge (Case) (in.) | 31.9 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
