Product Dimensions 31.9"h x 60"w x 30"d

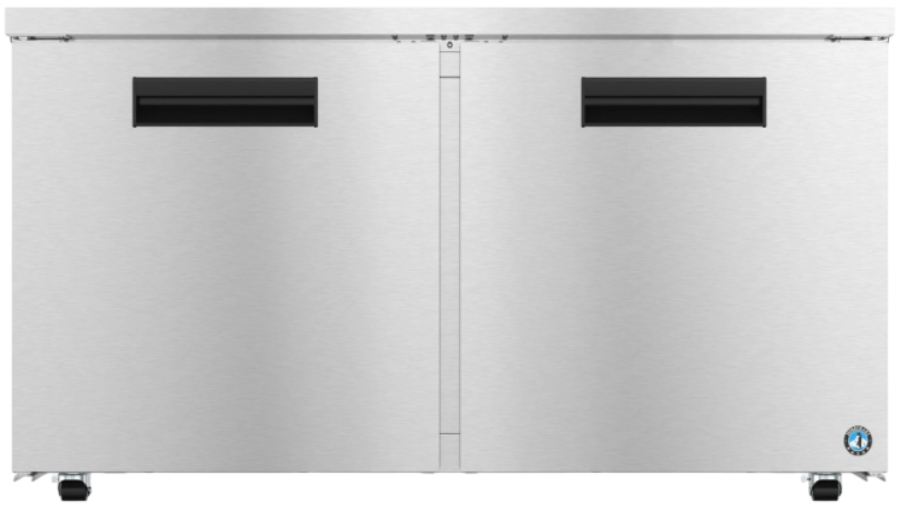

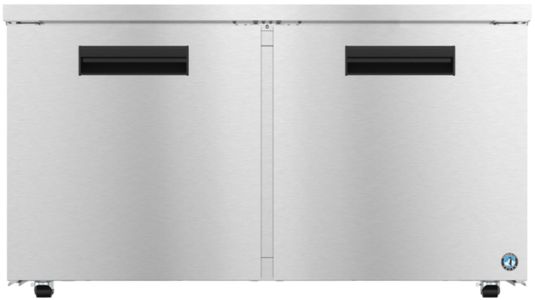

The UF60B-LP Steelheart Series Undercounter two section low profile freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.1 cubic feet this efficient undercounter low profile freezer and front air flow design.Read More
or
The UF60B-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.</p><p>The UF60B-LP also includes (2) epoxy coated wire shelves adjustable in 1/2" increments on anodized aluminum supports, (4) 2.25" stem casters (2 with brakes) are standard, plus field reversible, spring assisted self closing doors with stay open feature (no kit req'd). Electrical consumption of 3.95 kWh/day at 4 Amps, 10 ft long cord with a 5 - 15P NEMA plug. Optional kits: 4" or 6" casters, Epoxy wire shelf, Stainless steel back, Overshelves (single or double), Foot pedal kit (left or right hinge), See Spec Sheet for additional options. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ADA Compliant, Georgia Made Certified, ENERGY STAR® Qualified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit <a href="https://www.hoshizakiamerica.com/support/warranty/">hoshizakiamerica.com/support/warranty</a> for eligibility information).
Specifically designed to fit under an ADA compliant 34" work surface height counter
Engineered to maintain NSF-7 temperatures in 100° F ambient
Stainless steel exterior front, sides and top with stainless steel interior sides, back, and floor
Environmentally friendly R290 hydrocarbon refrigerant
Cabinet and doos are insulated with 2" of CFC free, foamed in place polyurethane
Innovative air distribution system distributes air evenly to maintain product temperature
Exclusive "stepped" door design to protect door gasket
Spring assisted self-closing door with stay open feature
Extruded aluminum flush mount door handle
Magnetic door gasket is easily removeable for cleaning
Hot gas condensate removal
E-coated evaporator coil
Anodized aluminum shelf supports adjustable in 1/2" increments
Standard with 2.25” casters (two with brakes)
10 feet cord and plug
*Refrigerator only, any other products that may be displayed are sold separately. Images may not represent the actual size and color in images may differ in person. See store for the actual color or finish.
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 feet cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: -18 – +10°F, Refrigerant: R290
Nominal Compres. of 1426 BTU/hr at 1/3 HP, Heat Rejection: 727 BTU/hr
Nominal storage capacity: 15.1 ft3, Interior storage capacity: 15.1 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 57.5″ D, Shelves included: 2
General Specs | |
| Product Weight (lbs.) | 310 |
| Width (in.) | 60 |
| Depth (in.) | 30 |
| Height (in.) | 31.9 |
| Defrost System | Automatic |
| Manufacturer Warranty | 7 Years: Labor, Parts, Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 57.5 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Standard Depth |
| Depth Less Door (in.) | 30 |
| Depth Excluding Handles (in.) | 30 |
| Depth Including Handles (in.) | 31 |
| Overall Height (in.) | 31.9 |
| Height Without Door/Hinge (Case) (in.) | 31.9 |
| Door Panel Type | Solid |
| Garage Ready | No |
| Collection | Steelheart® Reach-Ins |
| ADA Compliant | Yes |
| ENERGY STAR Certified | Yes |
| Ice Maker | No |
| Appliance Fit Width (in.) | 60 |
| Smart Compatible | No |
| Total Capacity (cu. ft.) | 15.1 |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 62.5 |
| Shipping Height (in.) | 35.5 |
| Voltage | 115 |
| Amp | 15 |
