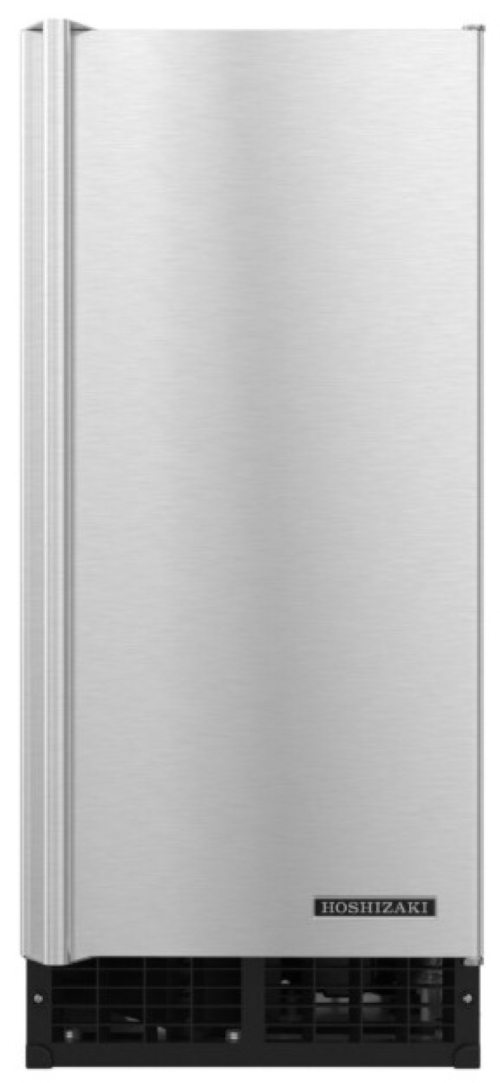

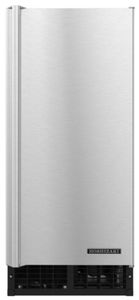

Hoshizaki Top Hat Cuber 14.88" 54 lb. Stainless Steel Air-Cooled Icemaker with Built in Storage Bin

Product Overview

The undercounter design is less than 34″ tall. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.

Up to 54 lbs of ice produced per 24 hours

Up to 27 lbs of built-in storage capacity (ft3)

Produces top hat ice cubes

Undercounter design is less than 34″ tall

Front in, front out airflow

UL approved for outdoor use

Easily disassembled water circuit for easy cleaning

Accessory – HS-5061 drain pump assembly

Environmentally friendly R290 refrigerant

Electrical Specs

Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 2.0, Max Fuse/HACR Breaker: 15 A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 95°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290, (2.3 oz. / 65.2 g)

Plumbing Specs

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption

9 kWh per 100 lbs @ 90/70, 65 gal of Potable Water per 100 lbs @ 90/70
